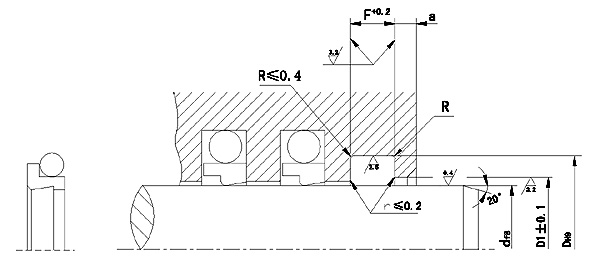

| 活塞桿直徑 | 溝槽底徑 | 溝槽寬度 | 半徑 | 通孔直徑 | 距離 | O型圈 |
| d f8 | D H9 | F+0.2 | R | D1+0.2 | a min | 斷面 |
| 6-11.9 | d+4.8 | 3.7 | 0.4 | d+1.5 | 2 | 1.8 |
| 12-64.9 | d+6.8 | 5 | 0.4 | d+1.5 | 2 | 2.65 |
| 65-250.9 | d+8.8 | 6 | 0.4 | d+2.0 | 3 | 3.55 |
| 251-419.9 | d+12.2 | 8.4 | 0.4 | d+2.0 | 3 | 5.3 |
| 420-649.9 | d+16.0 | 11 | 0.4 | d+2.5 | 4 | 7 |
| 650-999.9 | d+20.0 | 14 | 0.4 | d+2.5 | 5 | 8.6 |
| 規格及溝槽尺寸 | ||||||
| 活塞桿直徑 | 溝槽底徑 | 溝槽寬度 | 通孔直徑 | O型圈 | ||
| d f8 | D H9 | F+0.2 | D1+0.2 | 斷面 | ||
| 6 | 10.8 | 3.7 | 7.5 | 1.8 | ||
| 8 | 12.8 | 3.7 | 9.5 | 1.8 | ||
| 10 | 14.8 | 3.7 | 11.5 | 1.8 | ||
| 12 | 18.8 | 5 | 13.5 | 2.65 | ||
| 14 | 20.8 | 5 | 15.5 | 2.65 | ||
| 16 | 22.8 | 5 | 17.5 | 2.65 | ||
| 18 | 24.8 | 5 | 19.5 | 2.65 | ||
| 20 | 26.8 | 5 | 21.5 | 2.65 | ||
| 22 | 28.8 | 5 | 23.5 | 2.65 | ||
| 25 | 31.8 | 5 | 26.5 | 2.65 | ||
| 28 | 34.8 | 5 | 29.5 | 2.65 | ||
| 30 | 36.8 | 5 | 31.5 | 2.65 | ||
| 32 | 38.8 | 5 | 33.5 | 2.65 | ||
| 36 | 42.8 | 5 | 37.5 | 2.65 | ||
| 40 | 46.8 | 5 | 41.5 | 2.65 | ||
| 42 | 48.8 | 5 | 43.5 | 2.65 | ||
| 45 | 51.8 | 5 | 46.5 | 2.65 | ||
| 48 | 54.8 | 5 | 49.5 | 2.65 | ||
| 50 | 56.8 | 5 | 51.5 | 2.65 | ||
| 56 | 62.8 | 5 | 57.5 | 2.65 | ||
| 63 | 69.8 | 5 | 64.5 | 2.65 | ||
| 65 | 73.8 | 6 | 67 | 3.55 | ||
| 70 | 78.8 | 6 | 72 | 3.55 | ||
| 75 | 83.8 | 6 | 77 | 3.55 | ||
| 80 | 88.8 | 6 | 82 | 3.55 | ||
| 85 | 93.8 | 6 | 87 | 3.55 | ||
| 90 | 98.8 | 6 | 92 | 3.55 | ||
| 95 | 103.8 | 6 | 97 | 3.55 | ||
| 100 | 108.8 | 6 | 102 | 3.55 | ||
| 105 | 113.8 | 6 | 107 | 3.55 | ||
| 110 | 118.8 | 6 | 112 | 3.55 | ||
| 115 | 123.8 | 6 | 117 | 3.55 | ||
| 120 | 128.8 | 6 | 122 | 3.55 | ||
| 125 | 133.8 | 6 | 127 | 3.55 | ||
| 130 | 138.8 | 6 | 132 | 3.55 | ||
| 140 | 148.8 | 6 | 142 | 3.55 | ||
| 150 | 158.8 | 6 | 152 | 3.55 | ||
| 160 | 168.8 | 6 | 162 | 3.55 | ||
| 170 | 178.8 | 6 | 172 | 3.55 | ||
| 180 | 188.8 | 6 | 182 | 3.55 | ||
| 190 | 198.8 | 6 | 192 | 3.55 | ||
| 200 | 208.8 | 6 | 202 | 3.55 | ||
| 210 | 218.8 | 6 | 212 | 3.55 | ||
| 220 | 228.8 | 6 | 222 | 3.55 | ||
| 230 | 238.8 | 6 | 232 | 3.55 | ||
| 240 | 248.8 | 6 | 242 | 3.55 | ||
| 250 | 258.8 | 6 | 252 | 3.55 | ||
| 260 | 272.2 | 8.4 | 262 | 5.3 | ||
| 270 | 282.2 | 8.4 | 272 | 5.3 | ||
| 280 | 292.2 | 8.4 | 282 | 5.3 | ||
| 290 | 302.2 | 8.4 | 292 | 5.3 | ||
| 300 | 312.2 | 8.4 | 302 | 5.3 | ||
| 310 | 322.2 | 8.4 | 312 | 5.3 | ||
| 320 | 332.2 | 8.4 | 322 | 5.3 | ||
| 330 | 342.2 | 8.4 | 332 | 5.3 | ||
| 340 | 352.2 | 8.4 | 342 | 5.3 | ||
| 350 | 362.2 | 8.4 | 352 | 5.3 | ||
| 360 | 372.2 | 8.4 | 362 | 5.3 | ||
| 380 | 392.2 | 8.4 | 382 | 5.3 | ||
| 400 | 412.2 | 8.4 | 402 | 5.3 | ||
| 420 | 436 | 11 | 422.5 | 7 | ||
| 430 | 446 | 11 | 432.5 | 7 | ||
| 440 | 456 | 11 | 442.5 | 7 | ||
| 450 | 466 | 11 | 452.5 | 7 | ||
| 480 | 496 | 11 | 482.5 | 7 | ||
| 500 | 516 | 11 | 502.5 | 7 | ||
| 520 | 536 | 11 | 522.5 | 7 | ||
| 550 | 566 | 11 | 552.5 | 7 | ||
| 600 | 616 | 11 | 602.5 | 7 | ||
| 620 | 636 | 11 | 622.5 | 7 | ||
| 650 | 670 | 14 | 652.5 | 8.6 | ||
| 700 | 720 | 14 | 702.5 | 8.6 | ||
| 800 | 820 | 14 | 802.5 | 8.6 | ||
| 900 | 920 | 14 | 902.5 | 8.6 | ||
